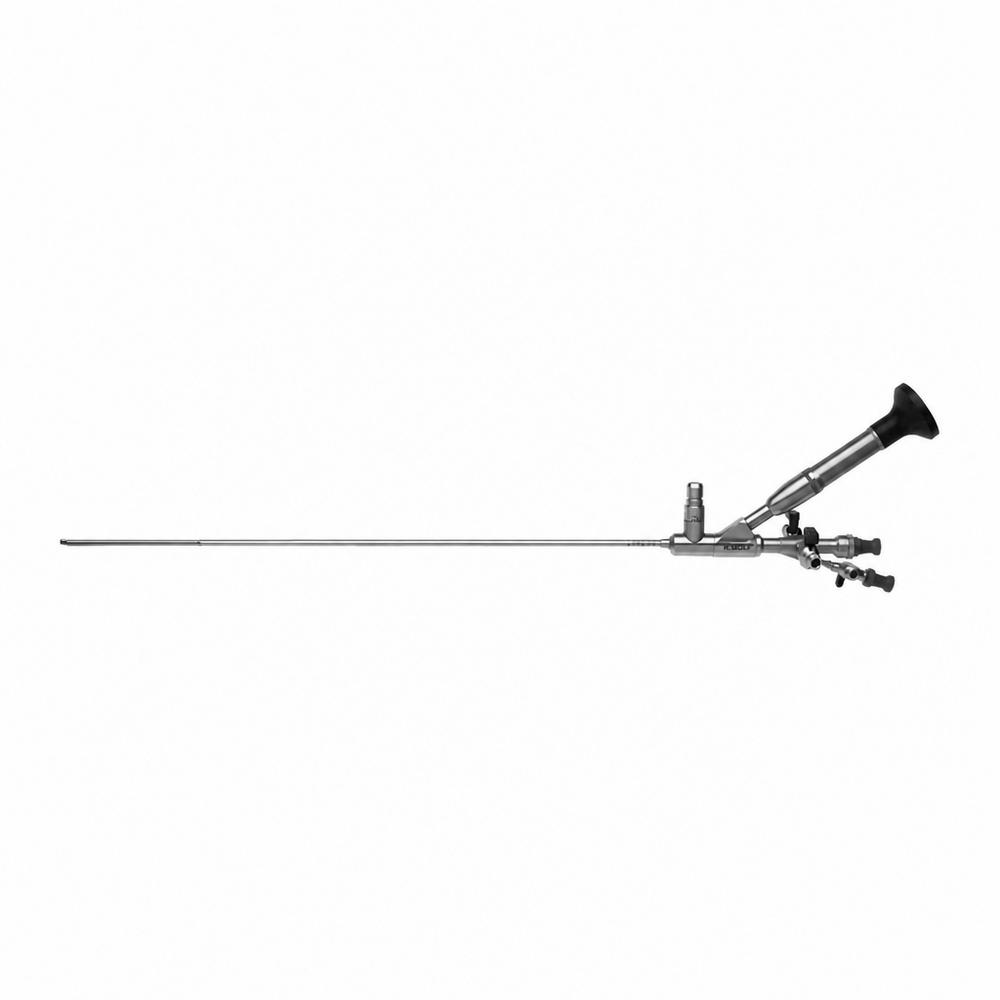

Richard Wolf 8702.534 E-LINE Ureterorenoscope

The Richard Wolf 8702.534 E-LINE ureterorenoscope is a semi-rigid endoscope designed for ureterorenoscopy in urology. Richard Wolf lists this model with a 5° direction of view, a 6/7.5 Fr. shaft size, a 430 mm working length, and a lateral ocular design. Because of this configuration, the instrument suits facilities that need a slim semi-rigid scope for diagnostic and interventional access within the upper urinary tract.

Technology / Core Function

Richard Wolf places the 8702.534 within its E-LINE ureterorenoscope range. The scope uses a fiber image carrier and a semi-rigid construction. In addition, the distal tip is described as atraumatically shaped. The lateral eyepiece layout supports traditional optical viewing, while the 5° viewing direction helps maintain forward visualization during ureteroscopic work. Official catalog material also identifies a working channel of 1 x 4 Fr, noted as 2 x 2.2 Fr in the product listing.

Applications

This ureterorenoscope is intended for urology departments, hospitals, ambulatory surgery centers, and specialist endourology users. It is suited for semi-rigid ureteroscopy and ureterorenoscopy where a narrow outer diameter and long working length are important. Therefore, it fits diagnostic assessment of the ureter and renal collecting system as well as endoscopic stone management when used within a compatible urology setup and according to the manufacturer’s instructions.

Technical Overview

Verified catalog information identifies the Richard Wolf 8702.534 E-LINE ureterorenoscope as a semi-rigid model with a 5° direction of view, 6/7.5 Fr. size, 430 mm working length, and lateral ocular. Additional published technical references describe a total length of 563 mm, an atraumatic distal tip, and a fiber image carrier. Furthermore, official Richard Wolf urology documentation places this model within the company’s ureteroscopy portfolio for upper urinary tract endoscopy.

Additional Identification

The manufacturer for this device is Richard Wolf GmbH. Market references and official urology catalogs consistently identify the product as the Richard Wolf E-LINE ureterorenoscope, model 8702.534. There is no need to present another brand name for search purposes, since Richard Wolf is already the strongest and most widely recognized name associated with this model.

Key Features

Key verified features include semi-rigid construction, 5° direction of view, 6/7.5 Fr. shaft size, 430 mm working length, lateral eyepiece, fiber image carrier, atraumatically shaped distal tip, and a 1 x 4 Fr. working channel listed as 2 x 2.2 Fr. in catalog references. Consequently, the Richard Wolf 8702.534 E-LINE ureterorenoscope remains a recognizable option for buyers searching for a slim semi-rigid ureterorenoscope from an established urology manufacturer.

The Richard Wolf 8702.534 E-LINE ureterorenoscope is a clearly identified semi-rigid urology endoscope with verified specifications from official Richard Wolf literature and supporting device references. For buyers looking for a defined 5° semi-rigid ureterorenoscope in the 6/7.5 Fr. class, this model offers a well-documented option for ureteroscopic applications.
